| Lente de escaneo de línea serie Aries ( 8 K ) |
||
| Modelo |
ONU-ALS858K |
|
| Longitud focal |
85 milímetros |
|
| Abertura |
F 2.8 |
|
| Formato de imagen |
38 |
|
| Montar |
M42 |
|
| Ángulo de campo |
23,1 ° *16,8 ° *9,1 ° |
|
| Distorsión óptica |
<-0,15% |
|
| MODIFICACIÓN |
0,6 metros |
|
| Dimensión |
Φ 58,5 * 59,87 mm |
|
| Brida BFL |
46,5 milímetros |
|
| Atrás Longitud focal _ _ |
23,93 milímetros |
|
| Operación |
Iris manuales |
|
| Enfoque manual |
||
| Hilo de filtro |
M55 * 0. 7 5 |
|
 |
||
etiquetas calientes :
prev :
UN-ALS408K
UN-ALS284K
Características del producto:
· Desarrollado para sensor de fotograma grande de 32 mm
· Gran apertura, hasta F2.4· Excelente rendimiento óptico, imágenes uniformes del centro y el borde.
Información del producto: Diseños personalizados están disponibles a pedido.
UN-ALS408K
Características del producto:
· Desarrollado para sensor de fotograma grande de 32 mm
· Gran apertura, hasta F2.4· Excelente rendimiento óptico, imágenes uniformes del centro y el borde.
Información del producto: Diseños personalizados están disponibles a pedido.

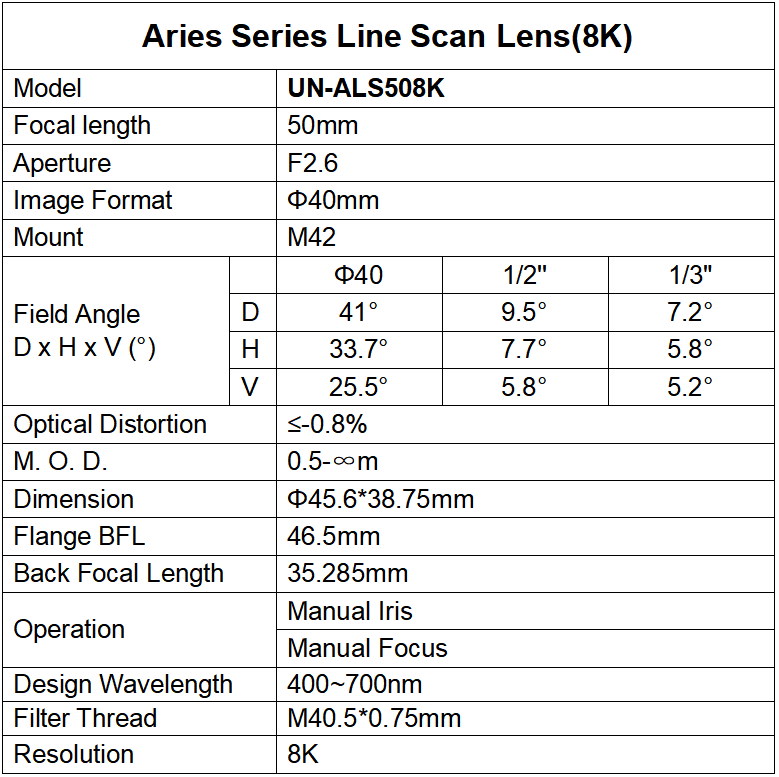

Line Scan Lens UN-ALS508K
For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.
· Developed for 40mm big frame sensor
· Large Aperture, up to F2.4· Excellent optical performance, uniform imaging of center and edge
Product information: Custom designs are available upon request.

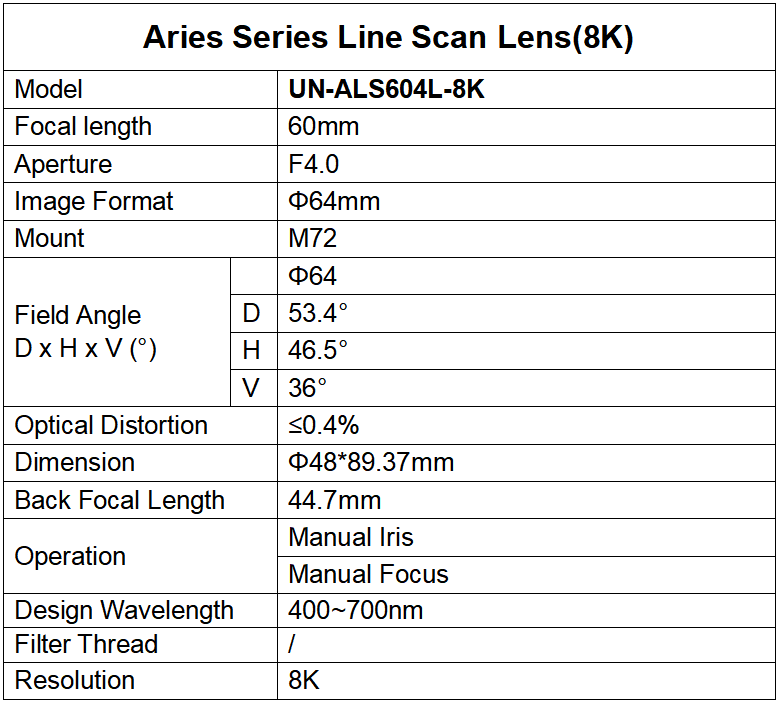

Line Scan Lens UN-ALS604L-8K
For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.
· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Product information: Custom designs are available upon request.

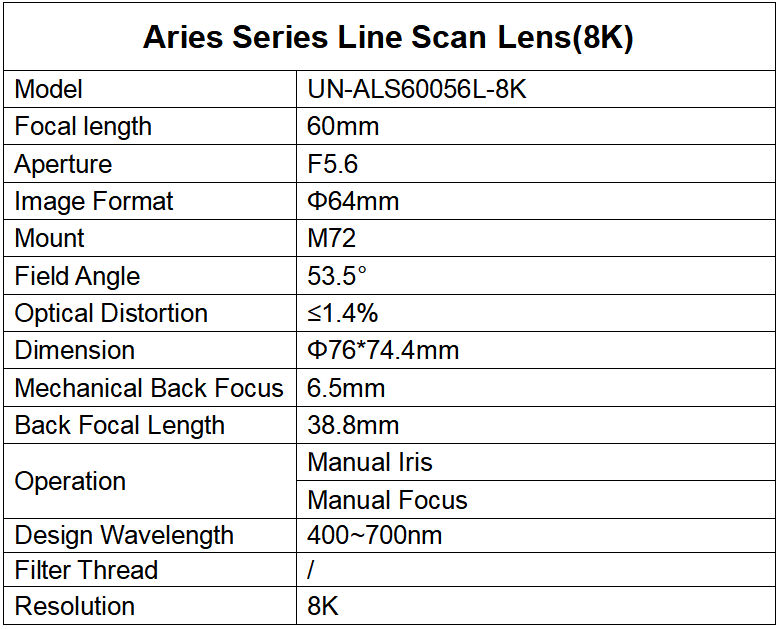

Line Scan Lens UN-ALS60056L-8K
For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, surface defect detection of metal sheets and coils, flat panel display & glass defect inspection, and dimension measurement of various rolled materials.
· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Product information: Custom designs are available upon request.
vidrio coloreado (corte, absorción, -selectivo, vidrio de color neutro)
Los materiales de suministro de Uni Optics incluyen filtros de densidad neutra, paso corto, paso largo, paso de banda, ultravioleta, infrarrojo, absorción de calor y conversión de la temperatura del color. simplemente apunte y haga clic en el nombre de arriba para ver la información de los filtros de los fabricantes.
ONU-GSWIR0814C
ITS Lens UN-AT35014S-12MP
For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.
· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· Ultra-high resolution,accurately capture license plates and facial details
Product information: Custom designs are available upon request.
