· Alto contraste de imagen
· Alta uniformidad de brillo
· Adecuado para sensor 2.4u, resolución de hasta 10MP
· Compacto, liviano y duradero

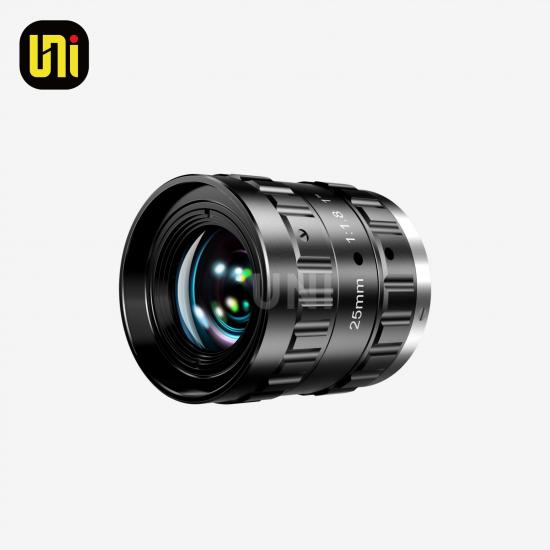

| Lente FA Formato 1 ″ Serie Taurus ( 10 MP) |
|||
| Modelo |
ONU-TFA2518L -10MP |
||
| Longitud focal |
25mm _ |
|
|
| Abertura |
F1.8-cerrar |
||
| Formato de imagen |
1"(16 mm) |
||
| Montar |
C |
||
|
Ángulo de campo
|
|
Profundidad x altura x V (°) |
|
| 1" |
36,21°×29,08°×21,86° |
||
| 1/2'' |
18,45°×14,72°×11,08° |
||
| 1/3" |
13,81°×11,08°×8,34° |
||
| Distorsión óptica |
<-0,49% |
||
| MODIFICACIÓN |
0,15 m |
||
| Dimensión |
Φ33* 35,7mm |
||
| Brida BFL |
1 7 . 5 26mm |
||
| Atrás Longitud focal _ _ |
12,6 mm |
||
| Operación |
Iris manuales |
||
| Enfoque manual |
|||
| Diseño de longitud de onda |
420~1000nm |
||
| Hilo de filtro |
M30,5×P0,5 |
||
 |
|||
etiquetas calientes :
prev :
ONU-TFA1620L-10MPsiguiente :
ONU-TFA3520L-10MP
ONU-TFA1220L-10MP
ONU-TFA1620L-10MP
ONU-TFA3520L-10MP
ONU-TFA5020L-10MP
Line Scan Lens UN-ALS604L-8K
For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.
· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Product information: Custom designs are available upon request.
ITS Lens UN-AT50014S-12MP
For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.
· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· Ultra-high resolution,accurately capture license plates and facial details
Product information: Custom designs are available upon request.
UN-TFA0628S-6MP
Características del producto:
· Desarrollado para formato de imagen de 1/1,8"
· Baja distorsión
· Alta iluminación relativa
· Enfoque e iris fijados con tornillo
Información del producto: Diseños personalizados están disponibles a pedido.
